Key Features:

  • Suitable for install applications as well as portable applications
  • Rotatable 80° x 50° horn for unparalleled flexibility
  • 120 dB SPL in a compact cabinet
  • Extended low-frequency delivery achieved when used in conjunction with AA B10 subs
  • Hi-Fi grade components give extended 90 Hz frequency response
  • Custom RAL colors available on request

SKU: AA 8M

958 Viewing this right now...
Hurry !! Only 10 left in stock

Details

Sharing the same voicing characteristics as the rest of the AA series, the AA 8M compact high-performance speaker is supremely adept to be used for mobile sound reinforcement as well as a fixed installation, with the promise of achieving an unmatched detailed level of sonic fidelity, irrespective of the environment that surrounds it.



Employing Faital PRO’s renowned 8FE200 mid-bass driver that works seamlessly with a high-quality custom-designed rotatable horn and the high-performance DE250 compression driver – both from reputed Indian manufacturer Aerons India; the internal passive crossover of the AA 8M has been tuned to ensure a linear, usable frequency response of 90 Hz to 18 kHz (-10 dB) across 80°x 50° dispersion while offering an impressive maximum SPL of 120 dB (peak). The rear cast aluminum connection plate has two 4 pin speakON® connectors fitted as standard, one input, and one link. These key factors allow the AA 8M to deliver a soundscape that is not just crisp and detailed, but also affirmatively authoritative – thereby giving it a distinct edge over other loudspeaker models in its class.



Aesthetically pleasing – the AA 8M exudes a premium yet functional design, reticulated grill front, and acrylic textured paint finish On the other hand, the AA 8M is extremely dextrous in its application integration as well, since it offers extremely flexible mounting options that include a top hat and both horizontal and vertical mounting yokes, rotatable horns, integrated handle and internal passive crossover designed to match the voicing of other products in the series, all achieving a flat, linear frequency response. All of these factors enable the AA 8M to seamlessly blend into any kind of venue – be it fine dining spaces or places of worship, entertainment destinations, or even a private viewing theatre.

Specifications

Design

Mid-high cabinet, bass reflex

Components

1x8” Faitalpro 8FE200

1x HF DE250 Aerons India

1x Horn Aerons India

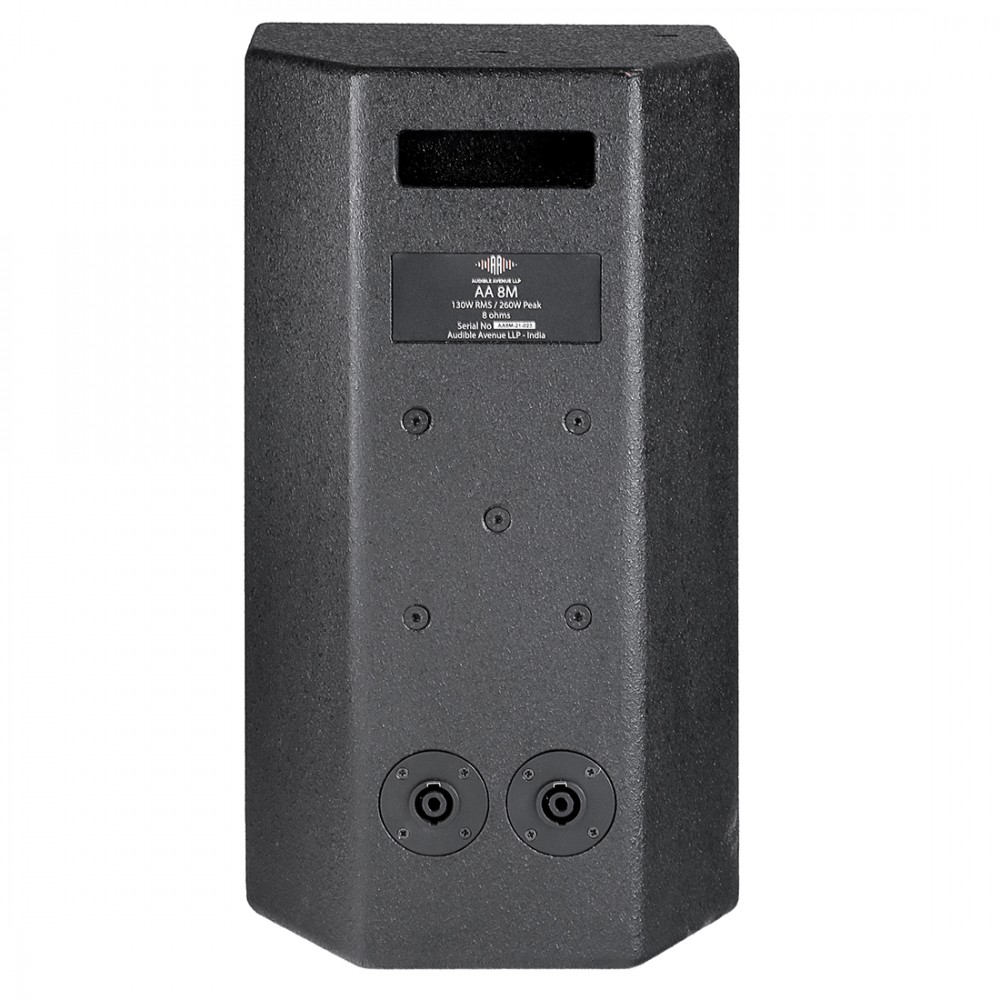

Connectors

2 x 4 pole speakON® connectors

Dimensions

441 x 242 x 241 mm (without C clamp)

Weight

10.3Kg (1 cabinet without C clamp)

Shipping weight

25.5Kg (2 cabinets with C clamps per carton)

Colour

Black

Options

 Custom RAL colors on request

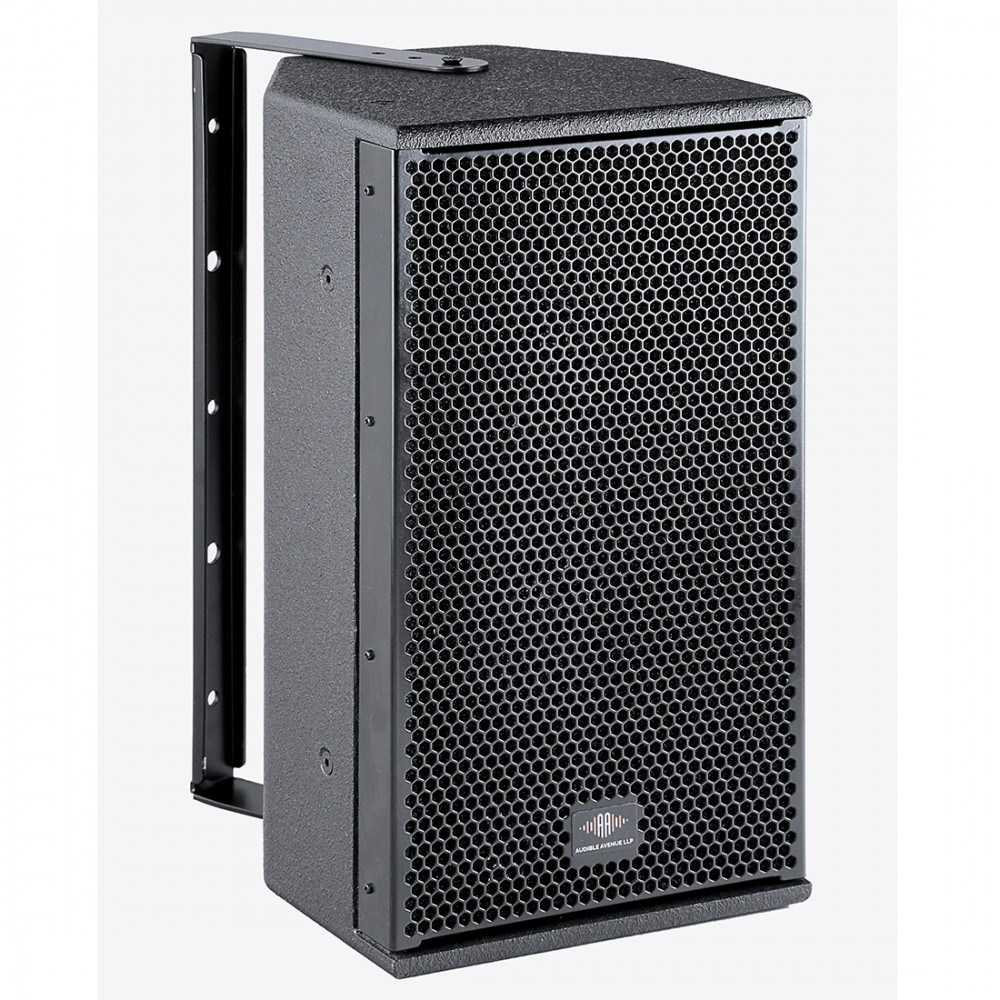

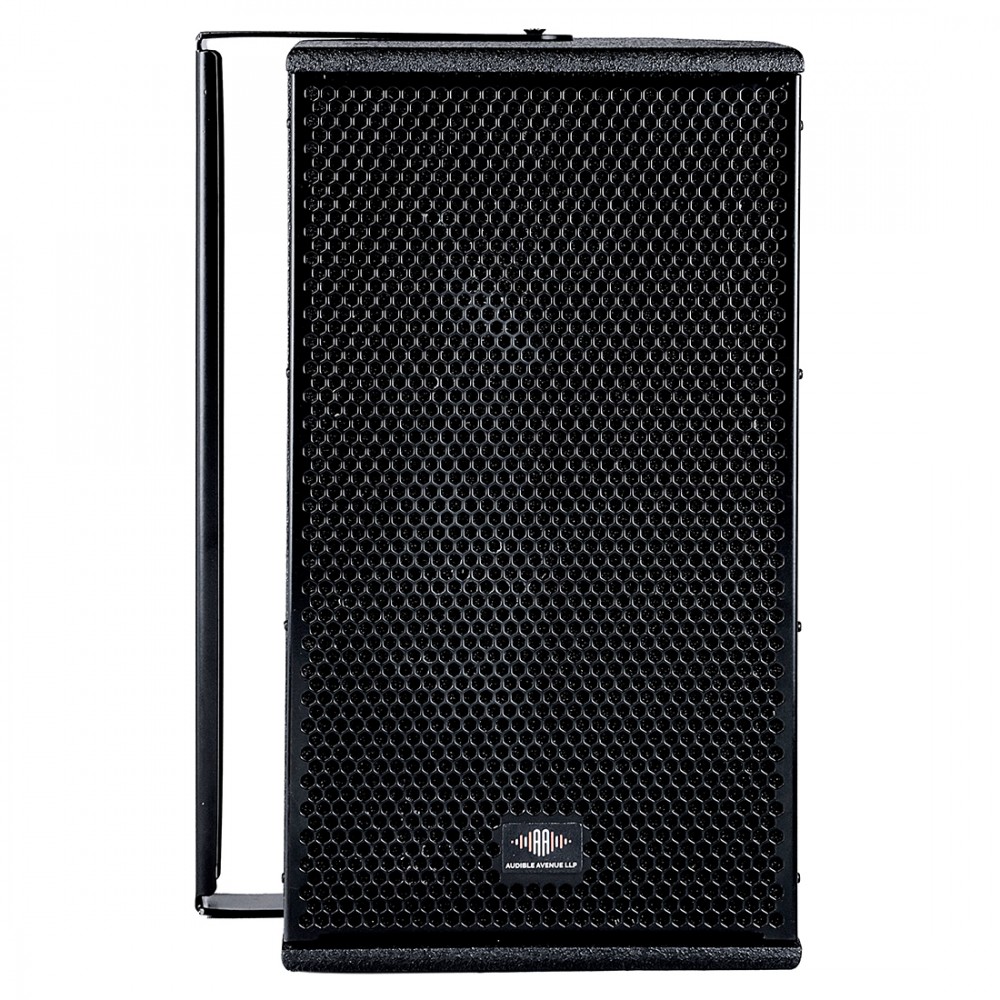

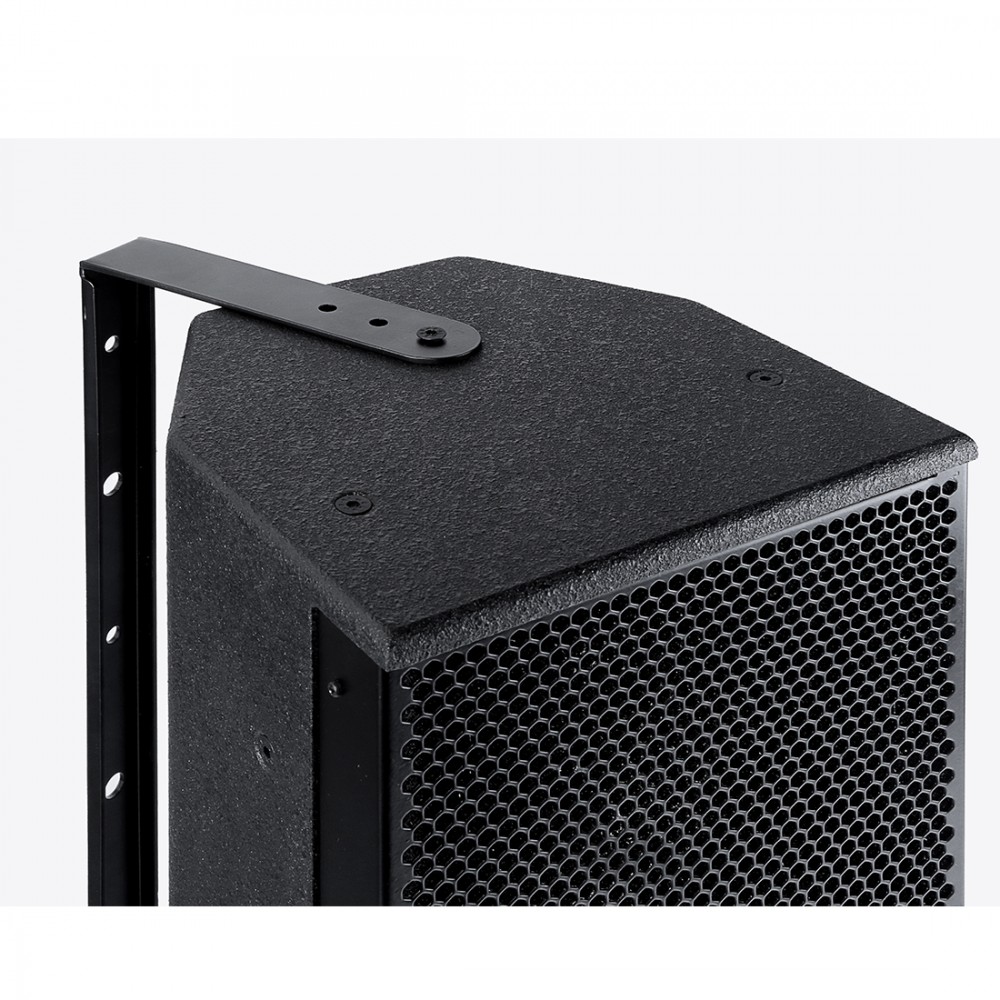

Rigging

8 x M6 mounting points for installation brackets and C clamp

5 x M6 Mounting points for wall bracket

 Fitted as standard

Pole Mount

Additional data

MDF construction, with durable scratch-resistant black textured paint finish, kick-proof steel grill, Wall Mount C- clamp





Impedance

8 ohms

Power handling

130 watts

Max power handling

260 watts

Sensitivity

96dB

Max SPL

117dB

Peak SPL

120dB

Frequency Response: - 3dB

110Hz to 18Khz

Usable Frequency: (-10dB)

90Hz to 18Khz

Dispersion

80° x 50°





SYSTEM OPERATIONS

Recommended amplification

200 Watt – 300 Watt

System controller

Aerons India DSP 4080

Recommended filter setting

Download from the website.
