AA 6F

AA 3M

Key Features:

  • Discreet, Ultra-compact size for inconspicuous mounting in any space
  • Vertical or horizontal mounting options
  • Refined and graceful appearance and style that fits any interior design
  • 16-ohm impedance for maximum amplifier efficiency.
  • RAL colors are available on request
  • Use in conjunction with AA B10 subs for extended low-frequency delivery



SKU: AA 3M

743 Viewing this right now...
Hurry !! Only 1 left in stock

Details

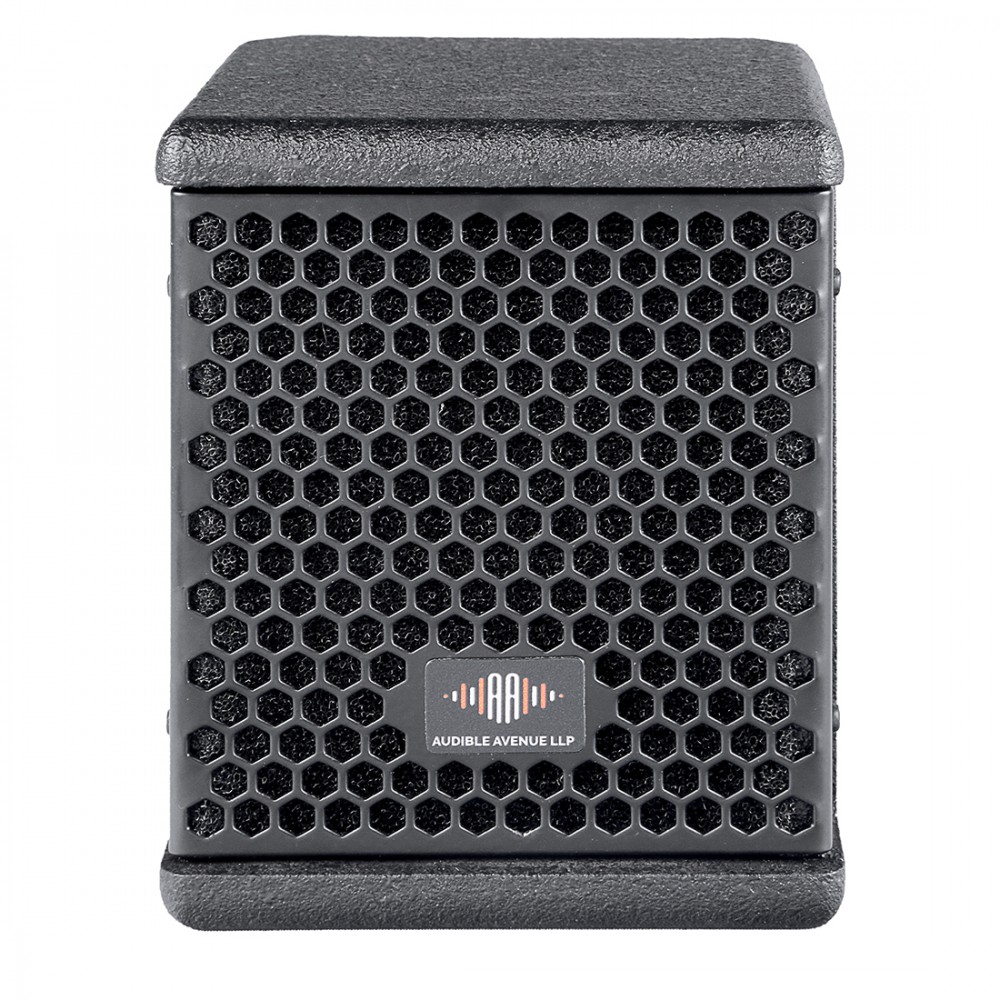

The Audible Avenue AA 3M epitomizes the age-old saying of “Good things come in small packages”; as the stylish, versatile, easy-to-use, and definitively powerful ultra-compact multi-purpose speaker is designed to facilitate effortless inconspicuous installation.



Featuring the use of the world-renowned 3FE25 full-range drivers from Faital Pro – the Audible Avenue AA 3M has been tuned to deliver a comprehensive dispersion pattern with 60° x 60° coverage; while the internal passive crossover ensures a flat, usable full-range frequency response of 130 Hz to 18kHz (-10 dB) with a maximum SPL of 107 dB (peak). This ensures that the AA 3M offers an unmatched level of clarity and detail in its sound performance. Plus, its ultra-efficient 16-ohm impedance design allows for easy daisy-chaining of multiple units on a single channel of amplification; thereby resulting in a more cost-efficient system solution.



Readily Available in black but custom RAL colors are available on request; this discreet style passive point-source enclosures fit any style décor allowing them to effortlessly blend into any room; with the capability of being mounted vertically or horizontally through the use of easy-mount brackets and custom adaptors.



The Audible Avenue AA 3M’s capability to out-perform and over-deliver on almost every customer-satisfaction parameter makes it perfect for applications like places of worship, fine-dining establishments, entertainment venues, conference centers, theme parks, or any other complex application that demands superlative quality sound reinforcement for crisp, accurate and assertive music and speech reproduction.

Specifications

Design

Mid-high cabinet, reflex tuning

Components

1x6.5” (165mm)/ Faitalpro 3FE25

Connectors

2 x 4 pole speakON® connectors

Dimensions

146 x 115 x 118mm (without C clamp)

Net Weight

1.2Kg ( 1 cabinet without C clamp)

Shipping Weight

7.5Kg (4 cabinets with C clamps per carton)

Colour

Black

Options

RAL colors on request

Rigging

2 x M6 mounting points for installation brackets and C clamp.

 Fitted as standard



Additional data

MDF construction, with durable scratch-resistant black textured paint finish, kick-proof steel grill, Wall Mount C- clamp





Impedance

16 ohms

Power handling

20 watts

Max power handling

40 watts

Sensitivity

91dB

Peak SPL

107dB

Frequency Response: - 3dB

170Hz to 18Khz

Usable Frequency: (-10dB)

130Hz to 18Khz

Dispersion

60° x 60°





SYSTEM OPERATIONS

Recommended amplification

50 Watt

System controller

Aerons India DSP 4080

Recommended filter setting

Download from the website.
