Details

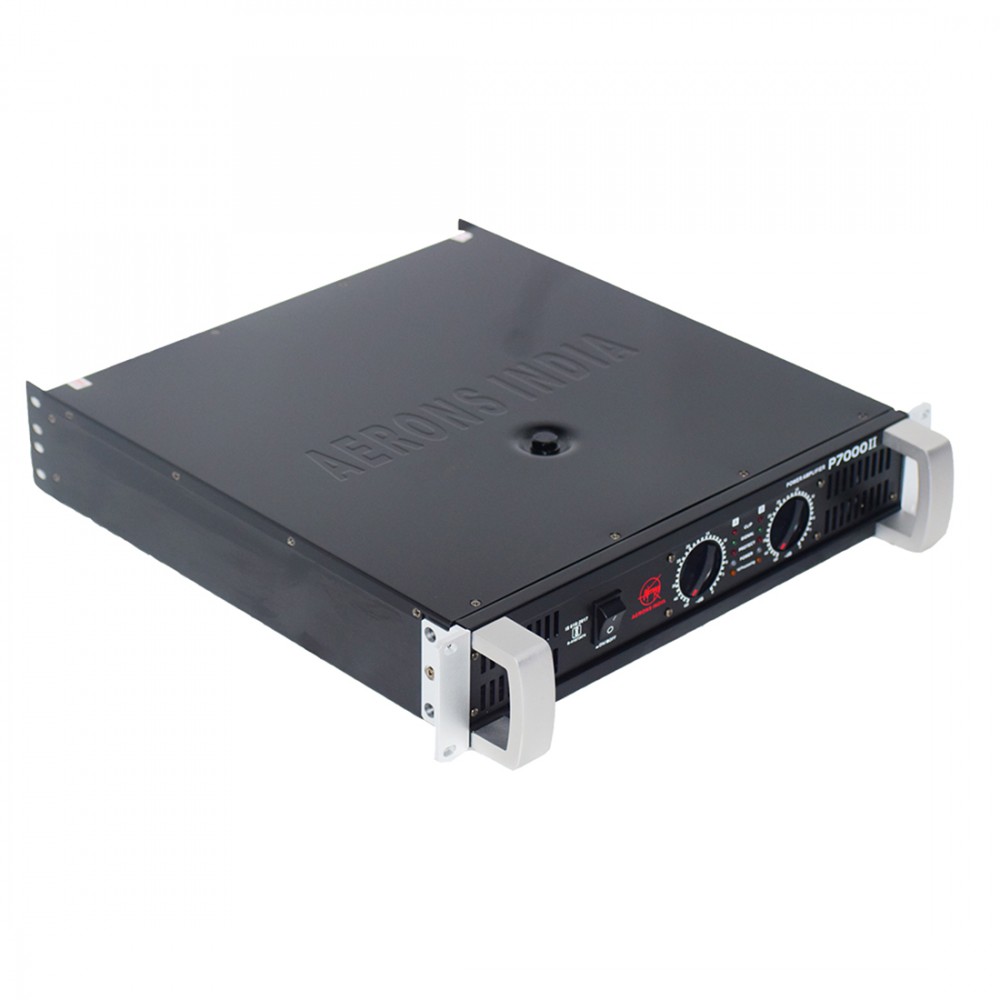

- The new P-ii Series Power Amplifiers deliver solid, professional-quality power in a wide range of configurations designed to suit a variety of applications.
- Those on a budget will find the lineup's high power output and affordable prices offer superior quality without putting a strain on allotted funds. Further savings are realized with extremely efficient operation utilizing EEEngine technology, which keeps operational costs down by significantly reducing AC power consumption and heat generation.
- The new P-ii Series Power Amplifiers can be used with any loudspeaker system, but if you're using popular speakers they will provide optimum power and performance.

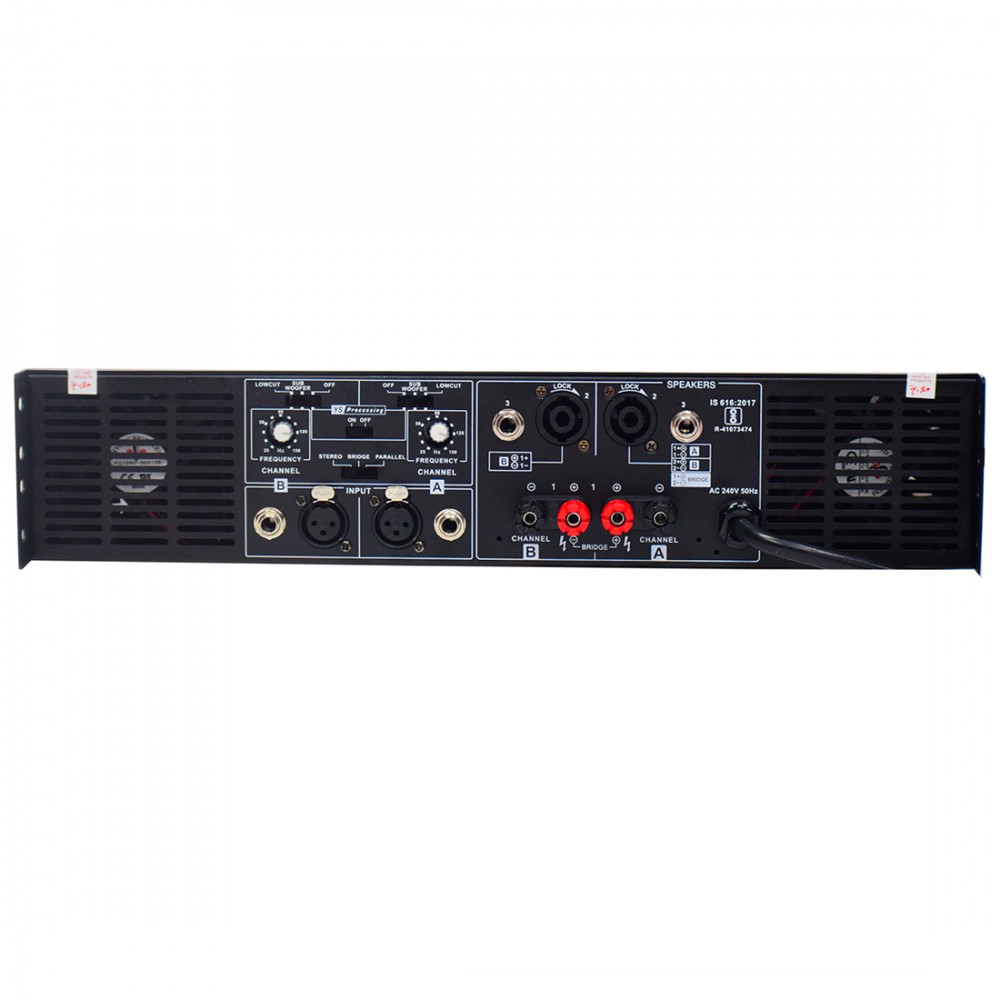

- To provide the most versatile connectivity possible, all four models are equipped with Speakon output jacks and 1/4-inch output jacks for each channel, in addition to a 5-way binding post. Balanced XLR and 1/4-inch TRS jacks are provided for channel input.
- EEEngine (Energy Efficient Engine) Technology makes more efficient use of AC power by reducing power consumption and heat generation without sacrificing output power or sound quality. When power requirements are low, the system uses a highly efficient current buffer to transparently switch input power on and off as needed. As power requirements increase, an independently responding auxiliary power line supplies additional power as required. Output isn't compromised because the auxiliary power line is driven by the power supply voltage which maintains maximum output to the speaker load.
- YS Processing achieves optimum matching with popular loudspeaker systems. This special circuit optimizes output from the power amplifier to match the characteristics of Club Series speaker systems, resulting in extra-smooth highs and enhanced lows.
Specifications
|
Rated Power (1 KHz, THD+N=0.1%) |
8Ω stereo 800W |
|
|
4Ω stereo 1350W |
|
|
2Ω stereo 1625W |
|
|
8Ω bridge 2700W |
|
|
4Ω bridge 3250W |
|
Frequency Response (1W 8Ω stereo) |
20Hz ̴ 20KHz(±1dB) |
|
Mode |
Stereo/Bridge/Parallel |
|
Input connectors |
Jack & female XLR (Neutrik®) |
|
Output connectors |
Binding post & Speakon (Neutrik®) |
|
Input Impedance |
Balanced 20K Unbalanced 10K |
|
Input Sensitivity |
1.4V |
|
Total Harmonic Distortion (20Hz~20KHz Rated Power, 8Ω) |
≤0.05% |
|
S/N ratio (8Ω, Rated Power 8Ω) |
≥108dB |
|
Damping Factor (1KHz, 89) |
≥300 |
|
Dimension (W x H x D) |
480x515x88 mm |
|
Net Weight |
24.6kg |
|
Gross Weight |
28.5Kg |
