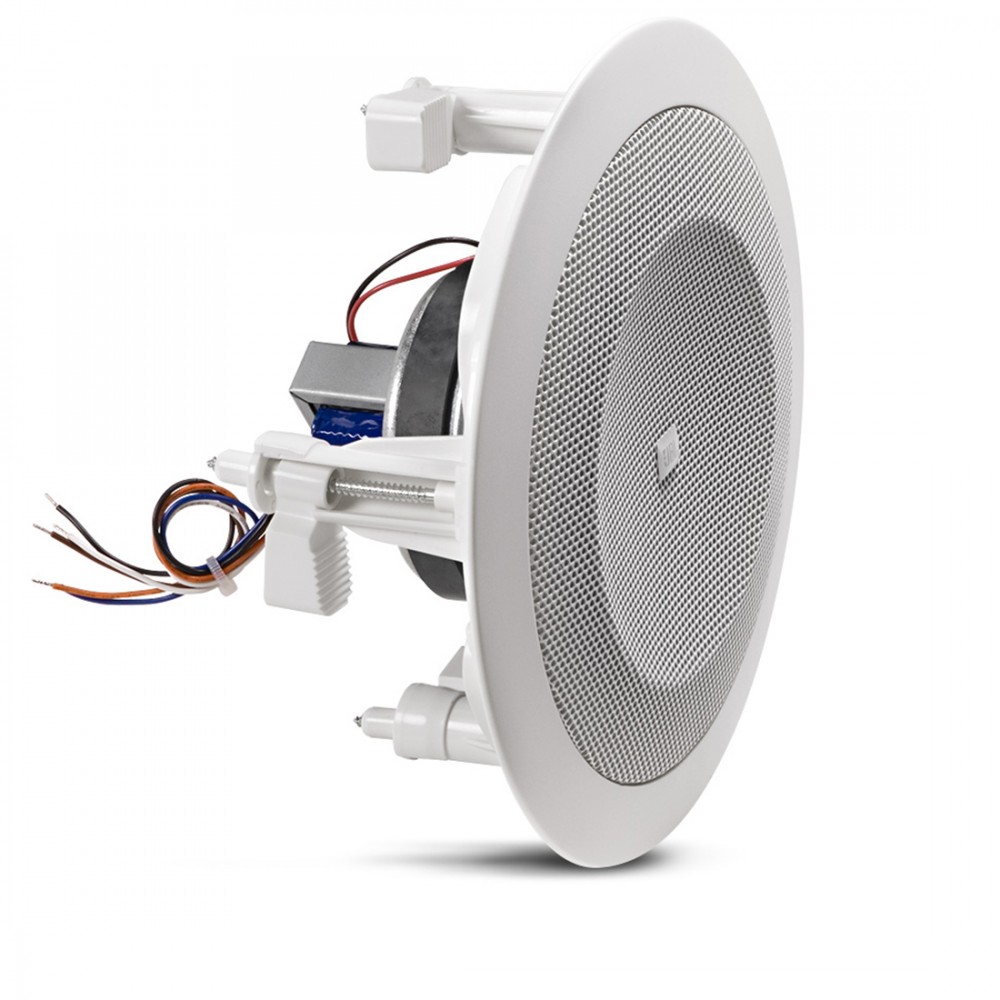

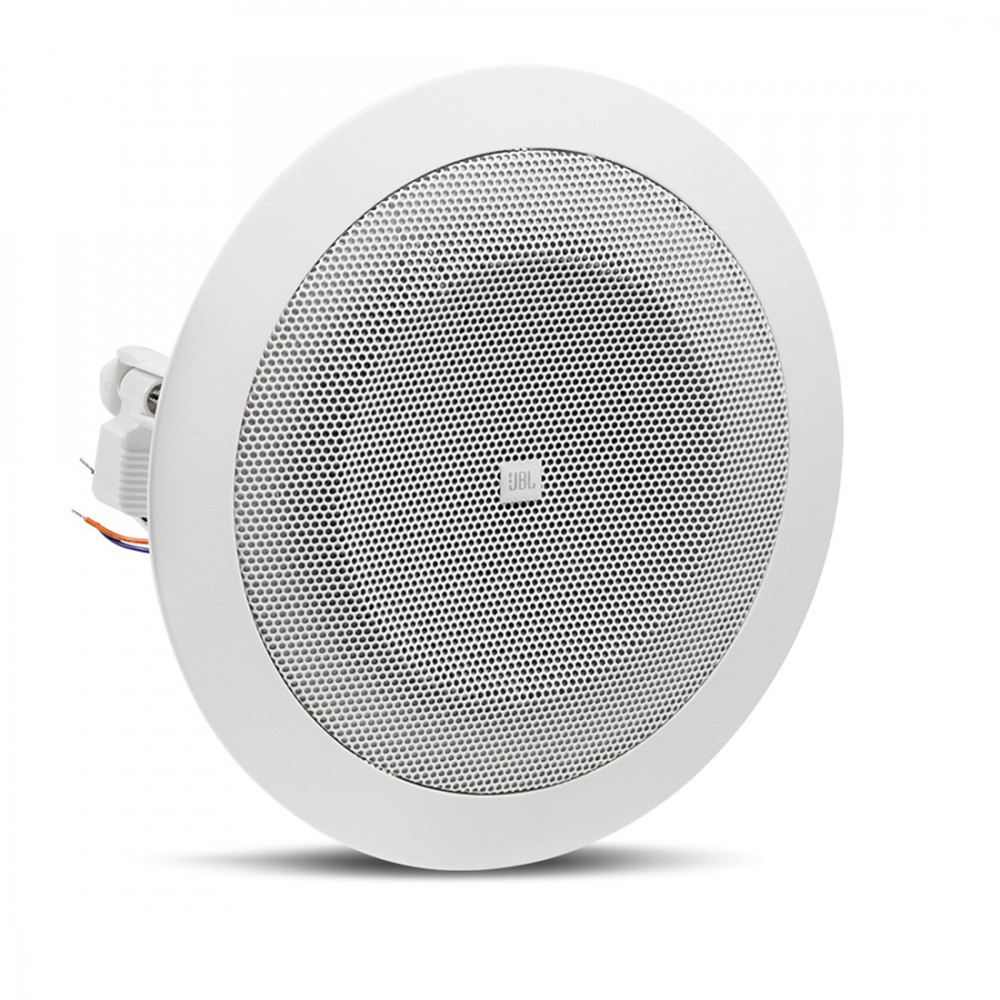

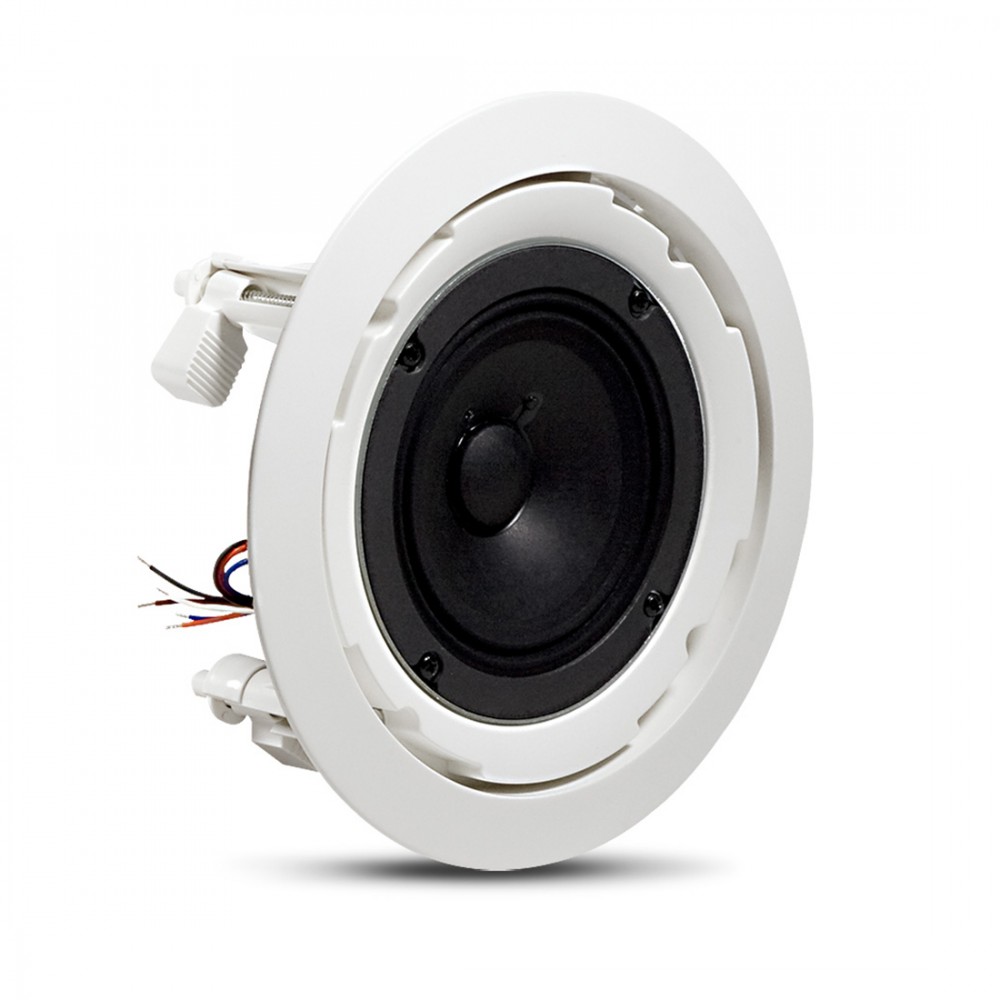

4-inch, Full-range, In-Ceiling Loudspeaker
The 8124 is a 4-inch, full-range, cost-effective loudspeaker for commercial applications. The 8124 features high-fidelity performance in an easy to install package. The system’s high sensitivity drivers deliver maximum sound levels using minimal amplifier power. With its contemporary grill design, 70V/100V taps and an open-back design, the 8100 series brings elegance and performance to basic commercial sound systems, or any application not requiring a backcan for installation.
Specifications
| Drivers | 4 in (100 mm), Full-range Driver |
| Frequency Range | 60 Hz – 18 kHz |
| Sensitivity | 93 dB (1 kHz – 8 kHz) |
| Coverage Angle | 130° conical |
| Transformer Taps | 6W, 3W, 1.5W (0.75W at 70V only) |
| Input Connectors | Bare wires |
| Dimensions (Diameter x Depth) | 8.1 in (206mm) x 3.5 in (89mm) |
| Weight | 2.5lb (1.2kg) |
| Included Accessories | Sculpted Grille |
| Optional Accessories | MTC-8124C C-ring, MTC- Rail tile rails |
| Power Rating | See transformer taps |
| Maximum SPL (1m) | 101 dB ave. (top 70V/100V tap) |
| Color | White |
| Baffle/Rim | Plastic |
| Ceiling Cutout Size | 175 mm diameter (6.9 in) |
| Plenum Usage | Not intended for use in return air plenums |
| Backcan | No |
